ICO 2.5 Series Coilover Kits

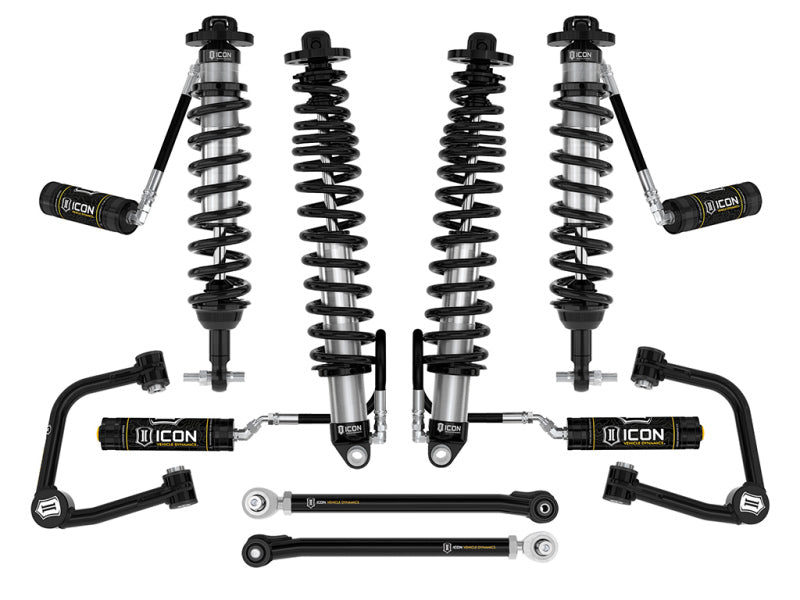

The ICON Vehicle Dynamics Stage 5 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos equipped with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 5 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 5 begins to free up the Bronco's rear suspension articulation while gaining strength and ground clearance with the addition of ICON tubular rear lower suspension links. These adjustable links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation and ride quality. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

This Part Fits:

Year	Make	Model	Submodel
2021-2023	Ford	Bronco	Badlands
2021-2023	Ford	Bronco	Base
2021-2023	Ford	Bronco	Big Bend
2021-2023	Ford	Bronco	Black Diamond
2022-2023	Ford	Bronco	Everglades
2021	Ford	Bronco	First Edition
2023	Ford	Bronco	Heritage Edition
2023	Ford	Bronco	Heritage Limited Edition
2021-2023	Ford	Bronco	Outer Banks
2021-2023	Ford	Bronco	Wildtrak
