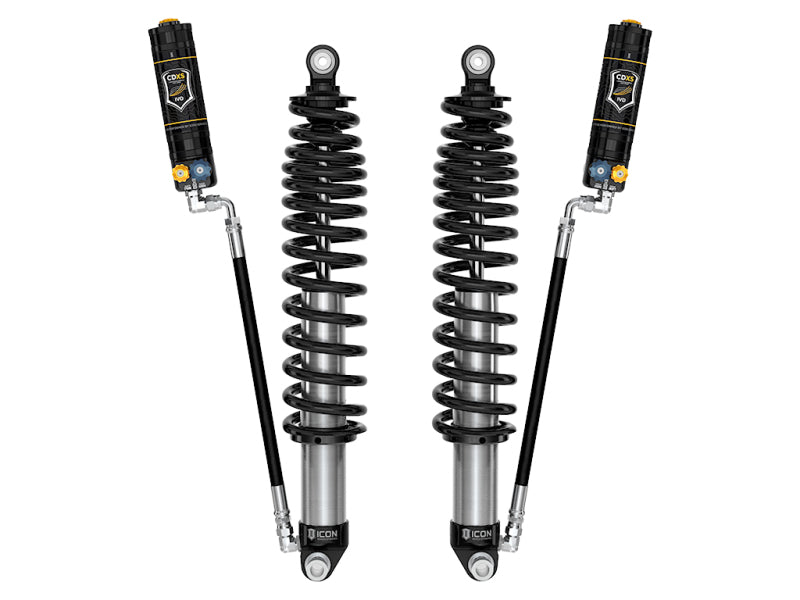

ICON 21-23 Ford Bronco Rear 2.5in VS RR Coilover Kit Heavy Rate Spring

SKU ICO48711X

Regular price: $2,921.31

Regular price: $2,921.31

Quantity

Product Description

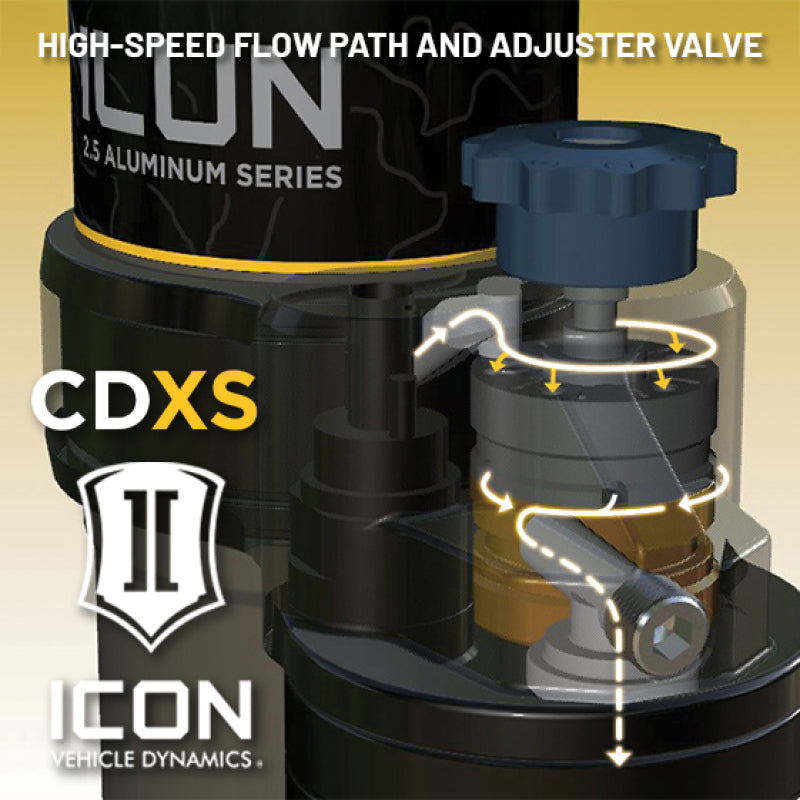

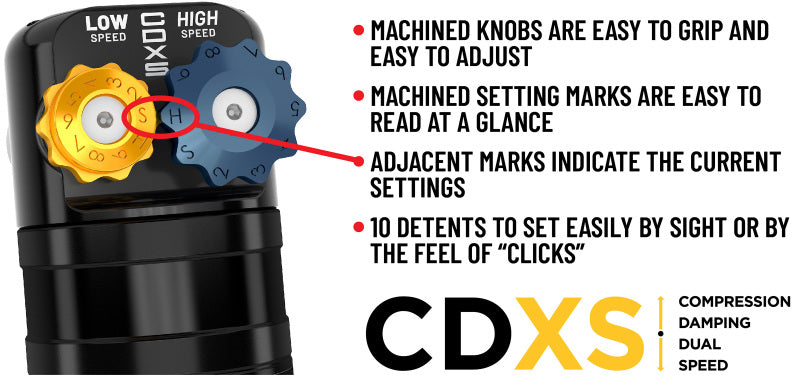

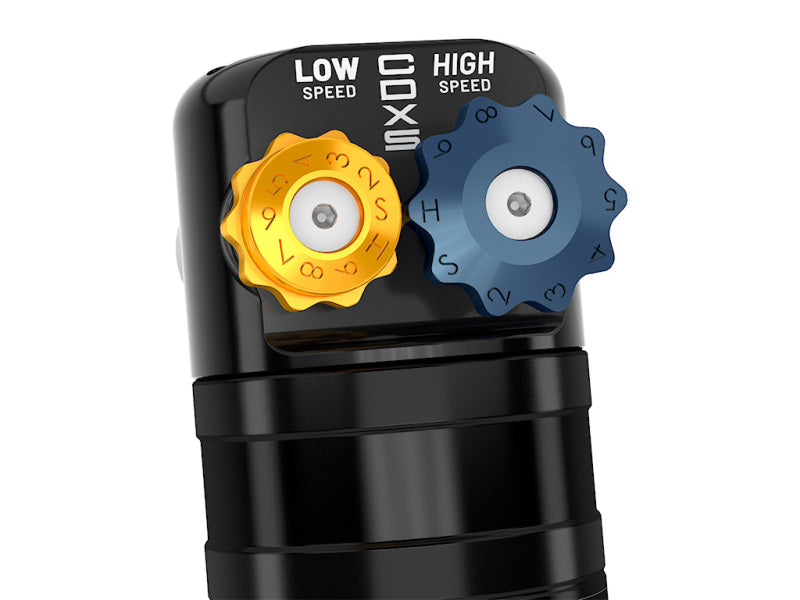

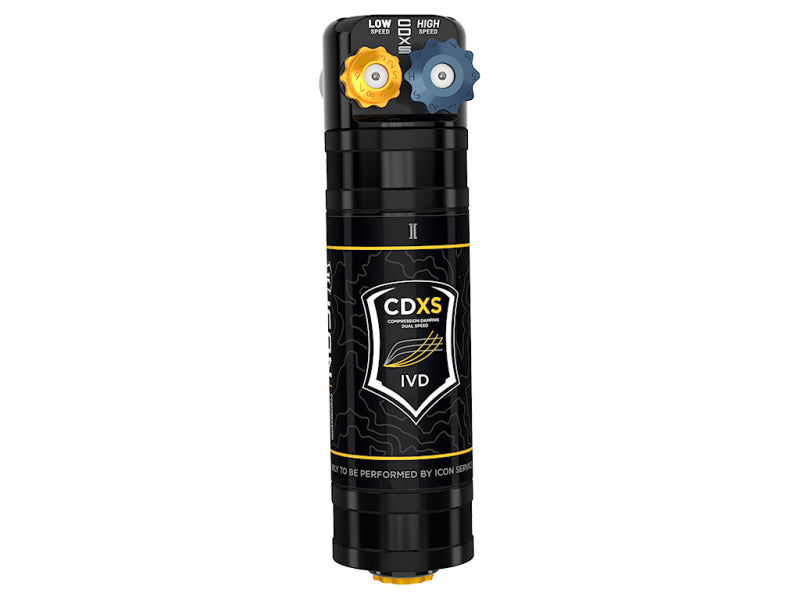

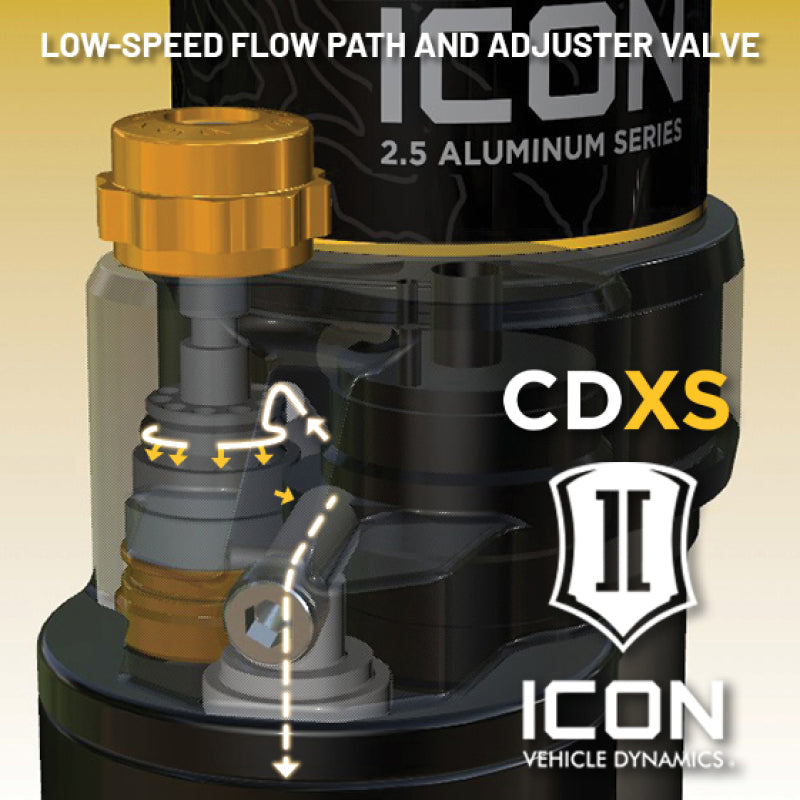

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

This Part Fits:

Year	Make	Model	Submodel
2021-2026	Ford	Bronco	Badlands
2021-2023,2025-2026	Ford	Bronco	Base
2021-2026	Ford	Bronco	Big Bend
2021-2024	Ford	Bronco	Black Diamond
2022-2024	Ford	Bronco	Everglades
2021	Ford	Bronco	First Edition
2023-2026	Ford	Bronco	Heritage Edition
2023-2024	Ford	Bronco	Heritage Limited Edition
2021-2026	Ford	Bronco	Outer Banks
2025-2026	Ford	Bronco	Stroppe Edition
2021-2024	Ford	Bronco	Wildtrak
